Updated 15 Feb 2023

Tawanai 400CL UPS

400w continuous 12V UPS

Power in Karachi terms : 4 AC ceiling fans + 8 LED 12W

Max surge 650W

With 1 Year warranty with service and parts. Rs 26,400

With 2 Years warranty with service and parts. Rs 30,000

With 3 Years warranty with service and parts. Rs 34,000

With 4 Years warranty with service and parts. Rs 38,000

With 5 Years warranty with service and parts. Rs 42,000

With 6 Years warranty with service and parts. Rs 46,000

Made in Pakistan in collaboration with our partners.

Tawanai 800CL UPS

800w continuous 24V UPS. Rs 38,000

Power in Karachi terms : 8 AC ceiling fans + 16 LED 12W

Max surge 1100W

With 1 Year warranty with service and parts. Rs 45,600

With 2 Years warranty with service and parts. Rs 49,000

With 3 Years warranty with service and parts. Rs 53,000

With 4 Years warranty with service and parts. Rs 57,000

With 5 Years warranty with service and parts. Rs 61,000

With 6 Years warranty with service and parts. Rs 64,000

Made in Pakistan in collaboration with our partners.

SM 1KW 12V Off Grid

With 1 Year warranty of Service only Rs 22,800

With 2 Years warranty of Free Service and

1 year warranty of service and parts. Rs 25,200

With 5 Years warranty of Free Service and

2 year warranty of service and parts. Rs 27,400

Made in China

Date : 21 April 2023

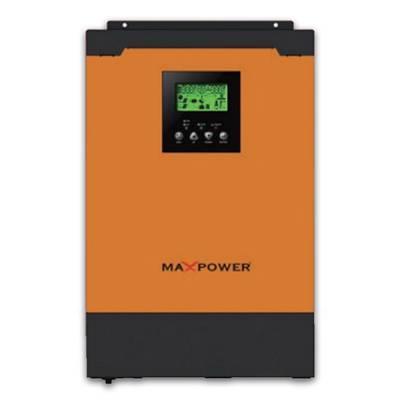

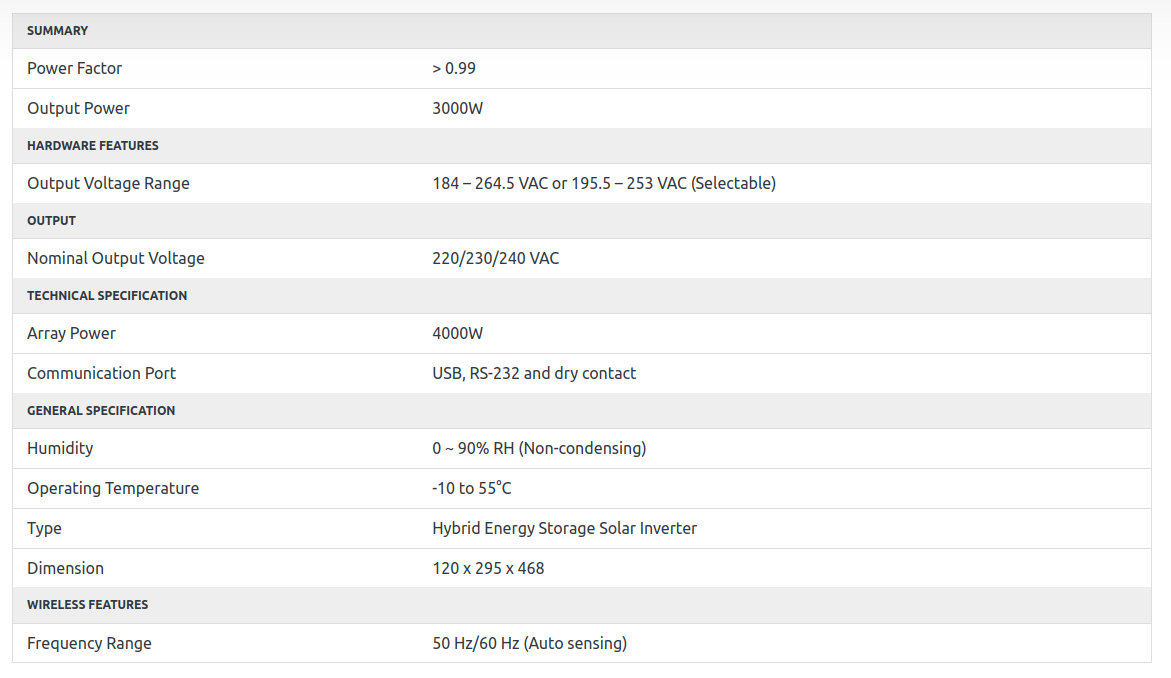

Max Power Infini V2 3KW Hybrid

Rs 55,000

Updated 3 Sep 2022

Goodwe SDT G2 10 KW = Rs 310,200

Knox G2 10 KW Rs 302,500

Chint 10 KW Rs 247,500

Goodwe Smart DT 10kw lahore Rs 341,000

SAJ 10 KW Rs 253,000

Chint 6 kW Rs. 165,000

Chint 10 kW Rs. 246,400

Chint 15 kW Rs. 313,500

Chint 20 kW Rs. 380,000

Chint 25 kW Rs. 440,000

Chint 30 kW Rs. 506,000

Chint 50 kW Rs. 621,500

Chint 60 kW Rs. 737,000

Chint 110 kW Rs. 1,181,000

Baykee 10KW Rs 253,000

growatt 10kw 335,500

knox 10kw Rs 277,200

chint 10KW Rs 259,600

Goodwe G2 10KW Rs 305,800

Knox 10kw 302,500 limited stock

goodwe 10kw 302,500 limited stock

goodwe 10kw g2 Rs 305,800

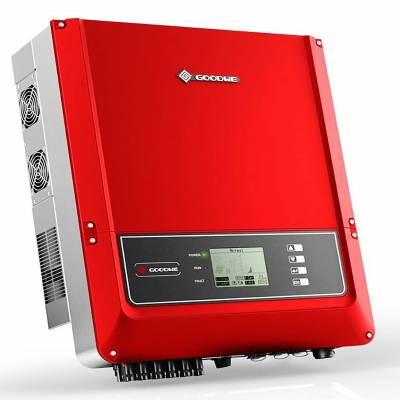

Goodwe Inverter information

Enphase AC Battery idea

Too much of a good thing: Inverter hyper-clipping

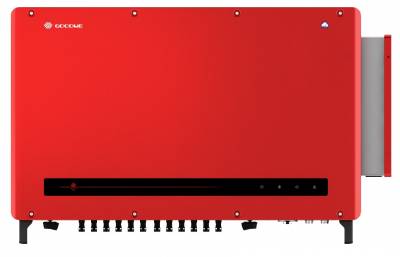

Goodwe 100Kw On-Grid Inverter

Rs. 768,000 ( July 2022 )

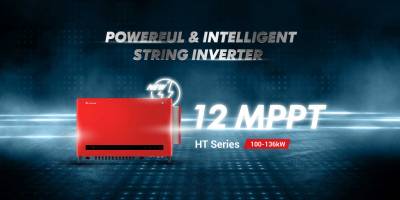

The new HT 1100Vdc Series (73-136 KW) is the ultimate high-power string inverter for the C&I sector. The HT series offers up to 12 MPPTs, and is compatible with Bi-facial modules, with a higher threshold of DC current (Max. 15A per string). It includes PLC communication, internal humidity detection. Configuration can be easily done via Bluetooth and firmware diagnosis & upgrading can be operated remotely. The HT series seamlessly incorporates different sets of technical strengths designed to achieve higher savings in the installation, enhance productivity and diversify available monitoring options, taking safety to the maximum possible level in accordance with the strictest industry standards.

Rs 981,000 ( July 2022 )

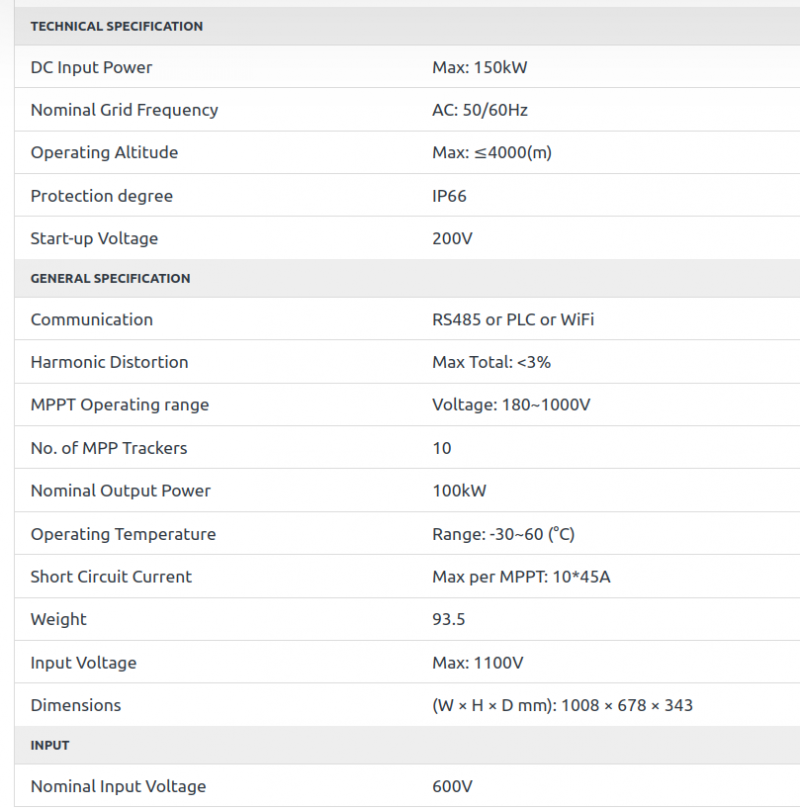

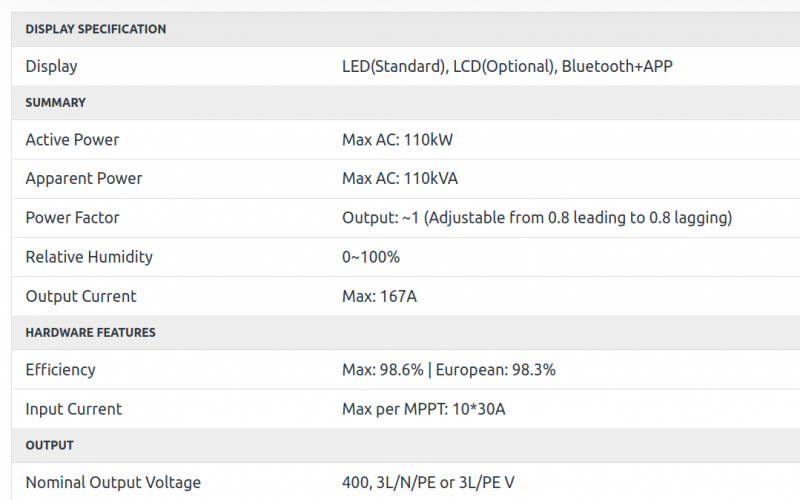

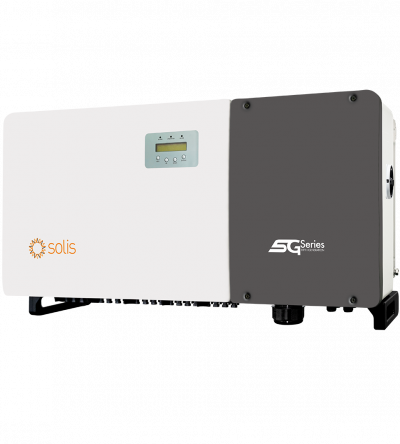

100-110kW three phase series string inverter adopt 10 MPPT design to provide a more flexible configuration scheme with a smaller environmental impact rate and higher generation efficiency. Anti-resonance, supporting over 6MW parallelled in one transformer, Strings intelligent monitoring, Smart I-V Curve Diagnosis supported

Datasheet

Manual

100-110kW Three Phase Inverter Leading Features

10 MPPTs, max. efficiency 98.7%

150% DC/AC ratio High power tracking density 90MPPT/MW Compatible with bifacial modules Night SVG function Intelligent string monitoring, smart I-V curve scan Remote firmware upgrade with simple operation AFCI protection, proactively reduces fire risk Built-in PID recovery for better module performance (optional) Type I SPD for AC (optional) Overvoltage load reduction and leakage current suppression technology, low failure rate Globally recognised branded componentry for longer life Power line communication (PLC) (optional) DC side supports “Y” connector Supports aluminium wire access to reduce cost

Intelligent redundant fan-cooling

Cooling concept

10

MPPT

WiFi/GPRS

Real time monitoring

180-1000V

MPPT voltage range

IP66

Ingress protection

App Store

IOS/Android

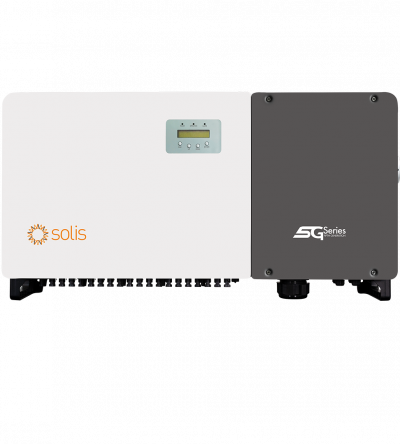

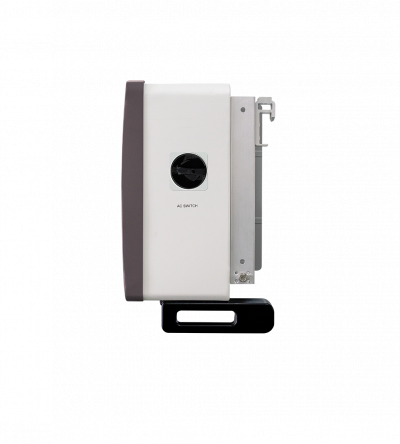

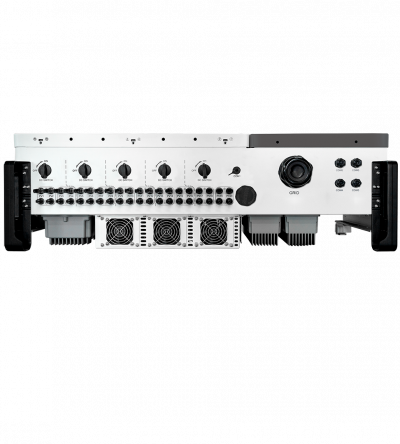

Integrated AC & DC disconnect switches

Touch safe DC Fuse holders adds convenience and safety

Support Anti-PID function, improve system efficiency

Maximum efficiency up to 99.00%

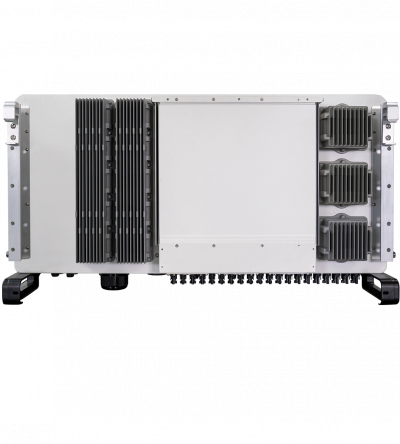

Maximum 20 strings input, support 1.5 DC/AC inverter load ratio

High precision intelligent strings monitoring, reduce fault location time

Ethernet/ RS485 multiple communication modes,flexible monitoring

Built-in AC and DC lightning protection module, all-around lightning protection

WiFi monitoring

<3%THDi

One MPPT

WiFi/GPRS Real-time monitoring

860-1450V MPPT voltage range

IP65 Ingress protection

App Store, IOS/Android

DC Values

Max DC input power(W) : 187500

Max DC input voltage (Volts) : 1500

Startup voltage(V) : 900

MPPT voltage range (Volts) : 860-1450

Max input current (Amps) : 150

Max Short Circuit current (Amps) 300

MPPT number : 1

Max input strings : 20

AC Values

Rated output power (Watts) : 125000

Max apparent output power (VA) : 125000

Max output power (Watts) : 125000

Rated grid voltage (Volts) : 600

Grid voltage range (Volts) : 528-660

Rated grid frequency (Hertz) : 60

Grid frequency range (Hertz) : 59.5-60.5

Operation phase : 3/PE

Rated grid output current (Amps) : 120

Max output current (Amps) : 120

Power Factor (at rated output power) : 0.8 leading … 0.8 lagging

THDi : <3%

Efficiency

Max efficiency : 99.00%

CEC efficiency: 98.50%

MPPT efficiency : >99.90%

Protection

DC reverse-polarity protection: Yes

Short circuit protection: Yes

Output overcurrent protection: Yes

Output over voltage protection: Yes

Insulation resistance monitoring: Yes

Residual current detection: Yes

Surge protection: DC II/ AC II

Grid monitoring: Yes

Islanding protection: Yes

DC switch/AC switch: Yes/Yes

DC Fuse: Yes

I/V Curve scanning: Yes

String level monitoring: Yes

Anti-PID function : Optional

Dimensions (mm/inch) : 1176W*713.5H*315D/46.3W*28.1H*12.4D

Weight (kg/lb) : 147lb (66.7kg)/ 35.4lb(16kg)

Topology : Transformerless

Self consumption (night) : <3W (without anti-PID)

Operating ambient temperature range: – 25~+60°C

Relative humidity: 0~100%

Ingress protection: NEMA 4X/ IP65

Noise emission : ≤55dB(A)

Cooling concept: Fan cooling

Max. operation altitude : 4000m

Compliance : UL 1741, UL 1741SA, UL 1998, UL 1699B, IEEE 1547, FCC Part 15 (Class A & B), CAN/CSA C22.2 107.1-1, Rule 21 Phase I, II&III

DC connection : MC4

AC connection : OT Terminal connectors(Max. 185mm2)

Display : LCD, 2×20

Communication connections : RS-485, Ethernet

OTA update: Yes

Warranty: 10 years standard (extend to 20 years)
